20KW Car EV Charger Double Gun IK10 Enabling Electric Vehicle Charging In Condominiums

Product Categories
Nanjing PowerCore Tech Co., Ltd.
Contact Now

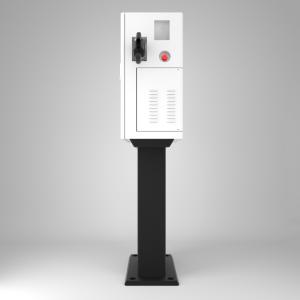

20KW Car EV Charger Double Gun IK10 Enabling Electric Vehicle Charging In Condominiums

Brand Name : Chargecore

Model Number : NKR-BDC

Certification : CE,UL,TUV

Place of Origin : Nanjing, China

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 500 pieces per month

Delivery Time : 20-45 days

Weight : 45-80kg

Wall Box Dimension : 640*570*317mm (L*W*T)

Cable length : 5m

Housing material : Metal case

Application scenes : Parking lot/Public charging station

Input frequency : 50Hz/60Hz

Charging outlets : Single/double(CCS+CHAdeMO)

Usage : electric car charging station

Packaging Details : carton

Contact Now

20/40 KW Double Single Gun Type1 Fast Charging Dc Ev Charger For Gas Station

NKR-BDC:Wall-mounted fast dc ev charger

NKR-BDC(20/40KW)fast charger is developed mainly for public commercial use with its modern appearance design and user-friendly operation interface. The modular design and overall output power can be configured arbitrarily function can reduce the drive waiting time, enhance the utilization rate of the charger and also easy to operate and do maintenance.

Specifications

Electrical Features
 Rated power
20KW/40KW
Input voltage
3-phase 260-530Vac
Input frequency
50Hz/60Hz
Measuring accuracy
Level 0.5
Output voltage
150-1000Vdc
Efficiency
≥95%
Power factor
≥0.99
Output Current
0 ~ 80A
Functional Features
User Interface
Emergency stop button, LED indicator, card swiping, touch screen
Charging standards
IEC 61851-1/IEC 61851-23/-24:2014/ISO15118-1-2013
ISO15118-2-2014/ISO 15118-3:2015/IEC 62196-1-2014
IEC 62196-3-2014/DIN 70121-2014
Communication
Internet Interface
Ethernet,WIFI,4G
OCPP
OCPP 1.6J
Working environment
Working latitude
<2000m
Working temperature
-30 ° C ~ +70 ° C (Output degraded above 50° C )
Working humidity
5% ~ 95% without condensation
Protection level
IP55/IK10
Cooling
Forced-air cooling
MTBF
100,000 hours
Safety standards
EN 61851-1-2001; EN 61851-21-2001; EN61851-22-2001
Security design
Over/under voltage protection, overload protection,
current leakage protection, grounding protection, over
temp protection, lightening surge protection

20KW Car EV Charger Double Gun IK10 Enabling Electric Vehicle Charging In Condominiums
After-sale Service
1. Two years warranty for all parts. If any parts break during the period, we will provide free replacement.
Non-quality factor damage is not included.
2. One to one technical engineer support for installation&operation and communication connection assistance
between your app and our OCPP platform.
Additional Accessories for Options
1. Pestle.
2. Wifi connection to Internet.
3. 3g/4g/GPRS connection to Internet.
4. Customized cable length.
5. Customized Box color and customized logo
